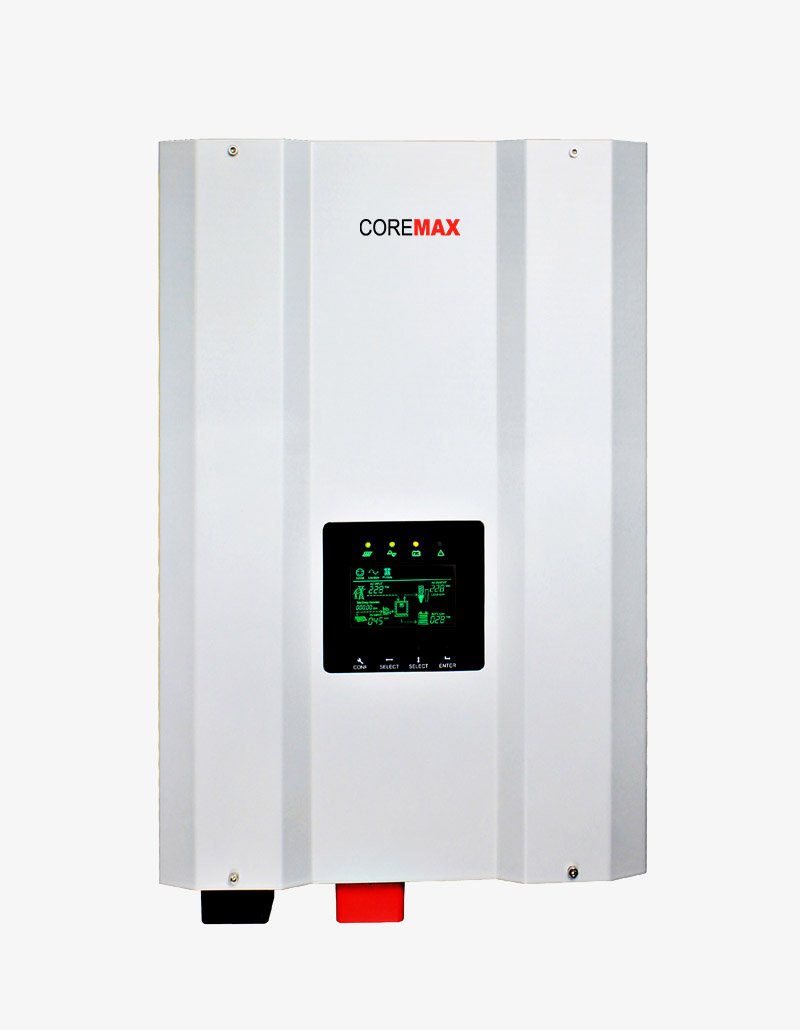

Hybrid inverter split phase 120v/240vLow frequency split phase solar inverterThis Solar inverter with split phase 120v /240v output, which combined functions of inverter, PV charger and AC charger. The comprehensive LCD display controller gives configurable and easily accessible operation such as battery charging current, AC/Solar charger priority, and selectable input voltage based on different applications. ADD TO CART VIEW MORE Basic featuresRated power 4kw to 12kw. with DSP controlPure sine wave, splite phase outputBuilt-in MPPT solar charge controllerLow frequency with transformerConfigurable AC/ Solar input priority via LCD settingCompatible to mains voltage or generator powerWIFI GPS remote monitoring optionalRS485 communication for BMS of Lithium batteriesThis coremax split phase solar inverter capacity range from 1KW-12KW, DC 12V/24V/48V, it’s applicable to 110VAC/120VAC markets demands, which has AC output of single phase 110VAC/120V, split phase 220V/240V; In LCD display, you can set output voltage, frequency, charging voltage, charging current to design best use based on different loads applications; meanwhile, it has built-in MPPT solar charge controller 80A, you can take use of sunshine freely and save electricity bills. Powerwall Battery for it Detail Specifications:Model8kw split phase10kw split phase12kw split phasePower Rating8000W10000W12000WAC InputInput VoltageWaveformSinusoidal(utility or generator)Nominal inputVoltage230VACLow LineDisconnect184Vac±4%(Normal) or 135Vac±4%(Wide) for 230VacLow LineRe-connect194Vac±4%(Normal) or 145Vac±4%(Wide) for 230VacHigh LineDisconnect263Vac±4%(Normal) or 263Vac±4%(Wide) for 230VacMax ACinput Voltage230Vac for Max270VacFrequency50Hz:41-54Hz,60Hz:51-64HzAC ChargerNominalCharge Current20A/35A/50A/70A/90A(5 stages adjustable charging current)Over ChargeProtectionBat.VN62.0VDC for 48V battery ； beeps 0.5s every 1s & fault after 60sSolar ChargerRated ChargeCurrent60A60A60APV InputVoltage range55-145VDC for 48VMax.PV open circuitarray voltage48V for 145VDCCharger modeMPPTPV Low VoltageRe-connectPV>Bat.V=3VPV Low VoltageDisconnectPVWBat.VEfficiency>97%ChargerNominal ChargerCurrent20A/35A/50A/70A/90A(According to the inverter model), 5 stages adjustable charging currentOver chargeProtectionBat.V>15.5VDC/31VDC/62VDC,beeps 0.5s every 1s & fault after 60sEfficiencyEfficiency(Battery Mode )>87�ficiency(Line Mode)>98�ttery VoltageNominal DCInput Voltage48VDCLow DC inputshut-down40VDC±1.2VDC for48VDCHigh DC inputAlarm & Fault64VDC±1.2VDC for48VDCTransfer TimeAC to DC DC to AC20ms(max) 15ms(max) System ParameterOver-Load Protection110%<load<150%, beeps 0.5s every 1s, and Fault after 60s off the output, load>150%, beeps 0.5s every 1 s, and Fault after 20sOutput Short Circuit ProtectionCurrent limit(Fault after 10s)Surge Rating(10s)1:3(VA)Power SaverLoad<25W(Enabled on "P/S auto"Setting of Remote control)ProtectionsLow battery.over charging,over load,over tempIndicatorsLED LCD DisplayGeneral Specification Operating Temperature Range0°C to 40°CStorage Temperature-15°C 〜60°COperation humidity5% to 95%(non-condensing)Audible Noise60dB maxcoolingForced air,variable speed fanDimension(L*W*H)627*416*204mmNet Weight(kg)52.5kg58.5kg66.5kg
