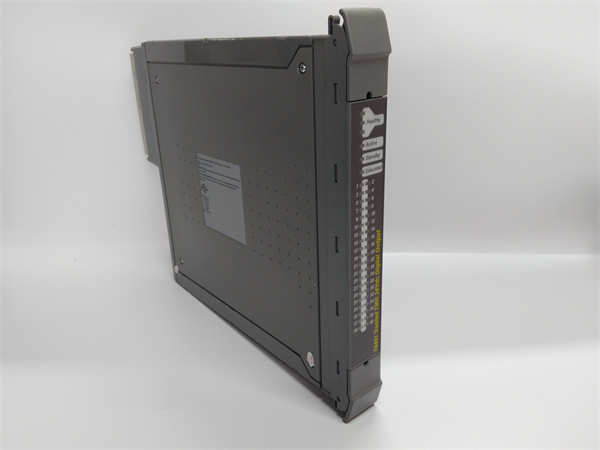

Description Model Number T8451 Manufacturer ICS Triplex / GE Automation & Controls System Platform Triconex® Safety Instrumented System (SIS) Module Type 32-Channel Discrete Input Module Input Type DC Voltage (typically 24/48 VDC) Channels per Module 32 points (3-channel TMR architecture) Voting Architecture Triple-Modular Redundant (TMR) – 3 x 32 inputs Isolation Channel-to-channel and channel-to-ground: 250 VAC continuous Input Voltage Range 10–60 VDC (supports 24VDC and 48VDC systems) On-State Voltage (Min) 11 VDC @ 2.8 mA (typical) Off-State Voltage (Max) 5 VDC Response Time < 5 ms (programmable filter options available) Diagnostics Built-in field wiring diagnostics (short/open circuit detection) LED Indicators Per-point LED status (input on/off), module health, fault Compatibility Works with T8110B, T8112, T8300, T8311, T8403, T8151B, etc. Chassis Compatibility Tricon Models 8011, 8012, 8013 Programming Software Tristation 1131 (IEC 61131-3 compliant) Safety Certification TÜV-certified for SIL 3 per IEC 61508 Operating Temperature 0°C to 60°C (32°F to 140°F) Installation 19-inch rack mount – occupies one I/O slot in Tricon chassis �� Product Introduction The ICS Triplex T8451 is a high-density 32-channel DC discrete input module designed for the Triconex® safety instrumented system (SIS). It is engineered to interface with field devices such as emergency stop buttons, limit switches, pressure switches, valve position feedback, and fire & gas detection sensors in mission-critical industrial environments. As a Triple-Modular Redundant (TMR) module, the T8451 receives the same input signal across three independent channels, performs real-time voting, and ensures fault-tolerant operation. This means that even if one channel fails or experiences noise, the system continues to operate safely and reliably — a core requirement for SIL 3 safety applications. The T8451 is ideal for applications requiring high I/O density and maximum safety integrity, such as Emergency Shutdown (ESD), Fire & Gas (F&G) systems, Burner Management (BMS), and process interlocks in oil & gas, chemical, power, and refining industries. ICS TRIPLEX T8451 ✅ Core Advantages & Technical Highlights 1. High Channel Density (32 Points) Doubles the input capacity compared to older 16-point modules (e.g., T9401B). Reduces the number of required modules and chassis slots, saving space and cost. Ideal for large-scale systems with hundreds of safety inputs. 2. Triple Modular Redundancy (TMR) with Voting Each input is processed by three independent circuits. Real-time voting at the input stagedetects and masks faults automatically. Ensures no single point of failureaffects system integrity. 3. Wide Input Voltage Range (10–60 VDC) Compatible with both 24VDC and 48VDCfield systems. Flexible for use across different plant voltage standards. Reduces need for external signal conditioning. 4. Advanced Diagnostics Detects open circuit (broken wire)and short circuit (field wiring fault) Alarms can be configured in logic to notify maintenance personnel. Improves predictive maintenanceand reduces downtime. 5. Fast Response Time & Filtering Typical response time < 5 ms, suitable for fast-acting safety interlocks. Programmable input filters help eliminate electrical noisefrom industrial environments. 6. Hot-Swap & Online Maintenance Supports hot-swap replacementwithout shutting down the safety system. LEDs provide immediate visual feedback on input status and module health. �� Typical Application Scenarios Industry Application Role of T8451 Oil & Gas Platforms ESD System Inputs Monitors E-stop buttons, manual shutdown stations, and isolation valves Refineries Fire & Gas Detection Connects to smoke, flame, and gas detectors for automatic shutdown Chemical Plants Reactor Safety Interlocks Reads limit switches, pressure switches, and level sensors Power Stations Turbine Protection Interfaces with vibration, overspeed, and lube oil pressure switches LNG Facilities Cryogenic Valve Feedback Monitors position of critical isolation valves in low-temp systems �� Related Model Recommendations Model Type Relationship to T8451 T9401B 16-Channel Discrete Input Older model; T8451 offers higher density T8311 / T8110B Main Processor Host CPU that processes T8451 input data T8151B / T8403 Ethernet Module Transmits T8451 data to SCADA/DCS T1025 Analog Input Module Complements T8451 for mixed signal systems T8551 Discrete Output Module Paired with T8451 for full control loop 8011 Chassis I/O Chassis Physical housing for T8451 installation Tristation 1131 Engineering Software Used to configure, monitor, and diagnose T8451 ICS TRIPLEX T8451 ⚙️ Installation, Commissioning & Maintenance Installation Install in any available I/O slot(Slots 4–5 in 5-slot chassis). Use ESD protection; ensure chassis is powered during hot-swap. Connect field wiring via compatible terminal assemblies (e.g., T4001 series). Verify wiring polarity and insulation. Commissioning Configure input filtering, diagnostic enable, and alarm settingsin Tristation 1131. Perform loop checkswith field devices. Test TMR voting behaviorby simulating a fault on one channel. Validate open/short circuit detectionif enabled. Monitor LED statusand event logs. Maintenance Regularly inspect LED indicatorsfor abnormal patterns. Review diagnostic logsfor recurring field wiring issues. Clean connectors and check for corrosion in harsh environments. Replace faulty modules using hot-swap Keep spare modules calibrated and stored properly.
